Model Architectures¶

All model architectures are pure nn.Module classes in dnanet/models/. They contain no training logic — that lives in Lightning modules (dnanet/modules/).

U-Net (dnanet.models.unet.UNet)¶

The primary segmentation model. Produces a binary mask predicting which scan points belong to allele peaks.

Input: (batch, 1, num_dyes, signal_length) = (B, 1, 5, 4096) Output: (batch, 1, num_dyes, signal_length) — sigmoid probabilities

Key design choice: Pooling and upsampling operate only along the signal-length axis (width), not along the dye axis (height). This preserves the dye-channel dimension while capturing multi-scale signal patterns.

Architecture¶

Input (1, 5, 4096)
  │
  ├── Encoder Block 1: DoubleConv(1→32) + MaxPool(1,2)    → (32, 5, 2048)
  ├── Encoder Block 2: DoubleConv(32→64) + MaxPool(1,2)   → (64, 5, 1024)
  ├── Encoder Block 3: DoubleConv(64→128) + MaxPool(1,2)  → (128, 5, 512)
  ├── Encoder Block 4: DoubleConv(128→256) + MaxPool(1,2) → (256, 5, 256)
  │
  ├── Bottleneck: DoubleConv(256→512)                      → (512, 5, 256)
  │
  ├── Decoder Block 4: Upsample + Cat + DoubleConv(512→256) → (256, 5, 512)
  ├── Decoder Block 3: Upsample + Cat + DoubleConv(256→128) → (128, 5, 1024)
  ├── Decoder Block 2: Upsample + Cat + DoubleConv(128→64)  → (64, 5, 2048)
  ├── Decoder Block 1: Upsample + Cat + DoubleConv(64→32)   → (32, 5, 4096)
  │
  └── Final Conv: 1x1 conv(32→1) + Sigmoid                → (1, 5, 4096)

Parameters¶

Autoencoders (dnanet.models.autoencoder)¶

Autoencoders learn a compact representation of the full electropherogram. That representation is later reused by PeakNet as global context for peak classification, so the main value is the encoder, not only the reconstruction.

Conv1dAutoencoder¶

Processes all dye channels jointly with one 1D CNN encoder/decoder. Use this when you want a single latent code that can mix information across dyes.

Input: (batch, dyes, signal_length) Output: same shape as input

Common parameters for the trainable 1D CNN autoencoders:

PerDyeConv1dAutoencoder¶

Runs a separate 1D autoencoder per dye channel and concatenates the encoded outputs. This is the default PeakNet autoencoder because it preserves dye-specific structure while still producing a compact global representation.

SharedWeightPerDyeConv1dAutoencoder¶

Like the per-dye model, but all dye channels share the same weights. This reduces parameter count while keeping channels separate.

UNet2DAutoEncoder¶

Processes the electropherogram as a full 2D image with a U-Net-style encoder and decoder. Use this when information across dye channels is important and you want the latent representation to retain both local detail and broader image-level context.

FourierAutoencoder¶

Non-learned baseline that compresses each signal in the frequency domain. Useful for comparing learned encoders against a simple fixed transform.

Peak Classifier (dnanet.models.peak_classifier)¶

Classifies extracted peak windows. In the default setup this is a binary allele-versus-artefact model, but the output size is configurable.

The model uses a 1D CNN because the useful evidence is local peak shape along the scan axis. It can also take a marker index embedding so one model can adapt to locus-specific behaviour without separate per-marker networks.

This model is used both as a standalone classifier and as the local branch inside PeakNet.

Input: (batch, channels, width) peak windows, optionally with marker indices Output: class logits per peak

Combined Classifier (dnanet.models.peaknet)¶

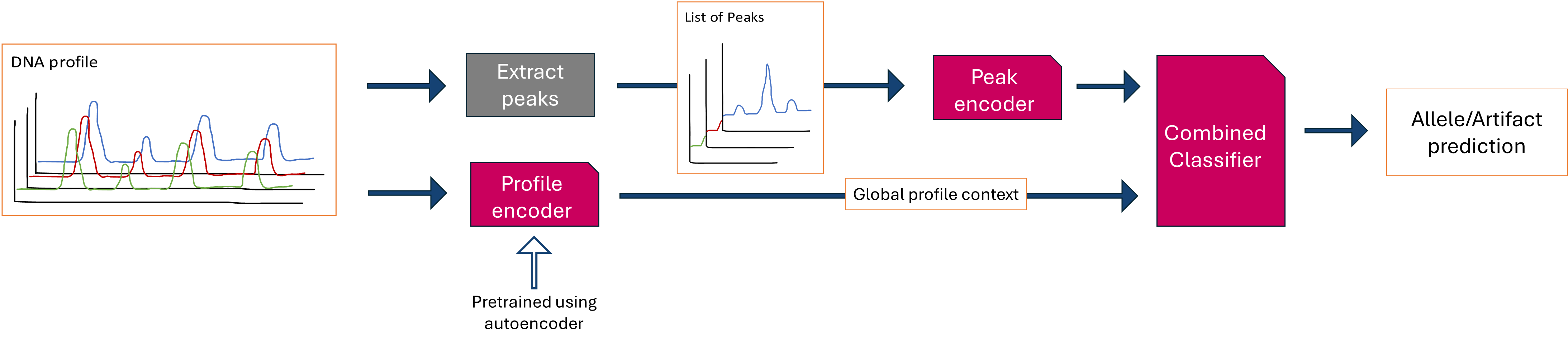

PeakNet combines local peak features from the peak classifier with global profile features from an autoencoder encoder. It predicts a class for each detected peak and writes those predictions back into a segmentation-shaped output tensor so it can train against segmentation-style annotations.

Combiner Types¶

• MLP — default and simplest option; concatenates local and global features
• FiLM — global context modulates local peak features
• CrossAttention — peaks attend to the encoded profile representation

Loss Functions (dnanet.models.loss)¶

DiceLoss¶

Dice coefficient loss for binary segmentation. Handles class imbalance naturally (allele peaks are sparse in the signal).

loss = 1 - (2 * |pred ∩ target| + smooth) / (|pred| + |target| + smooth)

FocalLoss¶

Focuses training on hard examples by down-weighting well-classified samples. Used for classification tasks.

loss = -α * (1 - p_t)^γ * log(p_t)
